Pcbn Solid Inserts For Finish Hardturning - Crossbill Wiper From Seco-Uniqueand Patented Design
Wiper technology is now an established method for decreasing cycle times and increasing productivity.

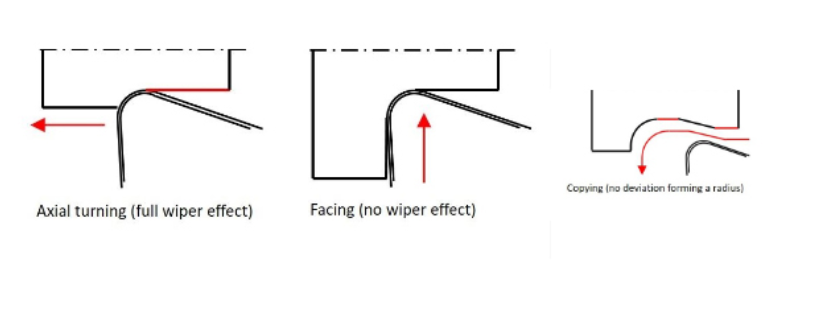

A drawback when machining with wipers, is that it is not possible to generate the true corner radius when machining towards a shoulder. Thewiper goes all the way down the flank of the insert, so the wiper geometry will be copied into the corner

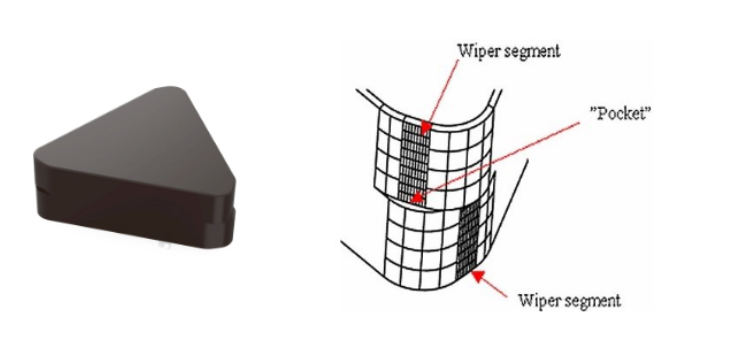

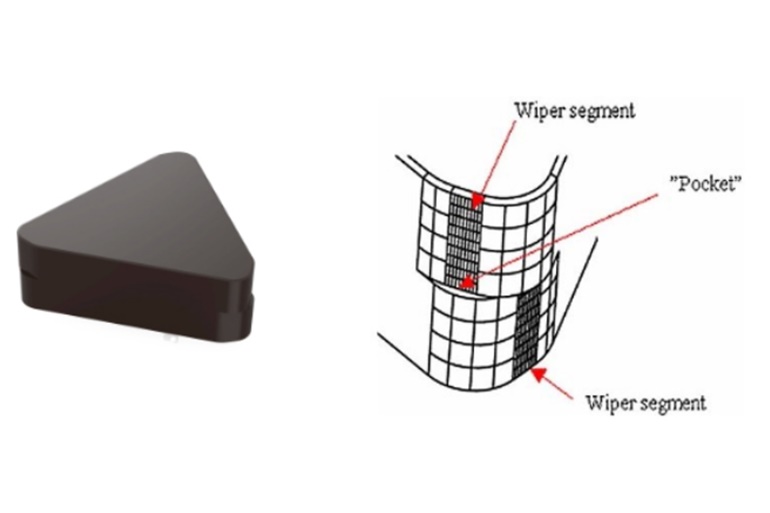

The Crossill TM wiper from Seco has addressed ths issue.The unique patented design of the wiper allows for the utization of handed wiper tech-nology on all cutting edges on a solid insert.
The Crossill TM wiper can be used for axial turning with all the usual beneft of wiper technology towards a shoulder and, due to the design, alsomachine a perfect radius.
The Crossbill TM wiper inserts are available as TNGX110308S-01020-L-WZ and TNGX1103085-O1020-R-WZ.
THE SECO WAY,CROSSBILL TM WIPER
WIPER TECHNOLOGY -PERFECT RADIUS- 6 CUTTING EDGES
Due to the new pricing structure for 2018 have the price level for sold TNGX1103085-01020-L-WZ and TNGX110308S-O1020-R-WZ been consider-able reduced and offering now an even more competitive alternative to brazed inserts.
